2005 Foretravel
Specifications, Brochures, Floor Plans & Photos model year 2005
- The 2005 was the last year of the 'U'xxx. After this it was replaced with the Phenix/Nimbus Lines which were very similar.
- 2005 and early 2006 Nimbus was the only year that had the wipers above the windshield.
- Introduced a Quad Slide
Specifications U320 / U295 / U270
Brochures

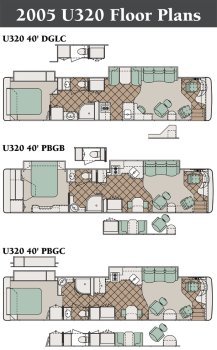

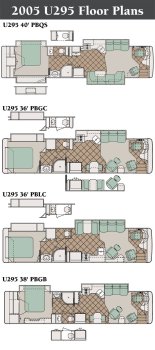

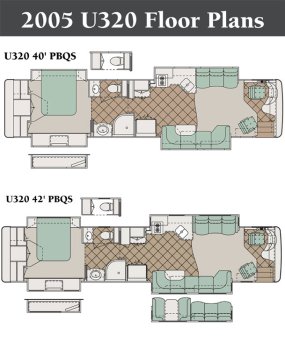

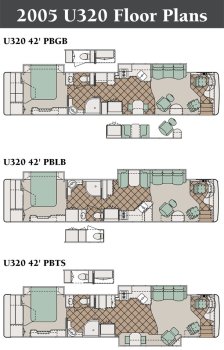

Floor Plans & Exteriors
Photos
Specifications
2005 U270 / U295 / U320
Models & Codes
| CODE | DESCRIPTION | Starting At: |
|---|---|---|
| DGLC | DOUBLE GALLEY, LEFT SLIDE CLOSET / LIVING | $582,568 |
| PBGB | PRIVATE BATH, LEFT SLIDE GALLEY / BED | $585,813 |
| PBGC | PRIVATE BATH, LEFT SLIDE GALLEY / CLOSET | $582,568 |
| PBLB | PRIVATE BATH, LEFT SLIDE BED | $585,813 |
| PBTS | PRIVATE BATH, TRIPLE SLIDE | $618,979 |
| PBLC | PRIVATE BATH, LEFT SLIDE CLOSET | $582,568 |
| PBQS | PRIVATE BATH, QUAD SLIDE | $670,652 |
WEIGHTS/RATINGS
WEIGHTS/RATINGS
U320
- Fresh water capacity: 112 gal / 95 gal. in triple slide
- Gray water capacity: 115 gal / 100 gal. in triple slide
- Waste water capacity: 56 gal / 50 gal. in triple slide
- LP capacity: 17 gal
- Fuel tank capacity: 180 gal, 150 gal. in triple slide
- Overall Height: 11' 6.5“ (to top of AC)
- Interior Height: x'
- Exterior Width 102”
- Wheelbase: xxx“
- Available Lengths: 38,40,42'
- GVWR: 42,000 lbs.
- Front GAWR: xxxlb.
- Rear GAWR: xxxlb.
- Tag GAWR: 9,000 lbs.
- GCWR: 52,000 lbs.
U295
- Fresh water capacity: 95 gal.
- Gray water capacity 115 gal.
- Waste water capacity 56 gal.
- Fuel tank capacity: 150 gal.
- LP tank capacity: 42 gal / 17 gallons with Hydro-Hot
- Overall Height: 11' 6.5” (to top of AC)
- Interior Height: x'
- Exterior Width 102“
- Wheelbase: xxx”
- Available Lengths: 36,38,40
- GVWR: 35,320 lbs.
- Front GAWR: xxxlb.
- Rear GAWR: xxxlb.
- Tag GAWR: xxxlb.
- GCWR: 45,320 lbs.
U270
- Fresh water capacity: 95 gal.
- Gray water capacity 115 gal.
- Waste water capacity 56 gal.
- Fuel tank capacity: 150 gal.
- LP tank capacity: 42 gal
- Overall Height: 11' 6.5“ (to top of AC)
- Interior Height: x'
- Exterior Width 102”
- Wheelbase: xxx“
- Available Lengths: 34,36
- GVWR: 35,320 lbs.
- Front GAWR: xxxlb.
- Rear GAWR: xxxlb.
- Tag GAWR: xxxlb.
- GCWR: 45,320 lbs.
CHASSIS
CHASSIS
| U320 | U295 | U270 | CHASSIS FEATURES |
|---|---|---|---|
| X | X | X | Foretravel chassis and superstructure |
| X | Cummins ISM02 500 h.p. electronic diesel engine | ||
| X | X | Cummins ISL02 400 h.p. electronic diesel engine | |
| X | Allison 4000MH 6 speed transmission | ||
| X | X | Allison 3000MH 6 speed transmission | |
| X | X | X | Allison transmission retarder, dual actuated |
| X | X | X | Air disc brakes, all wheels |
| X | X | Air hose for tire service | |
| X | X | X | Anti-lock braking system |
| X | X | X | Automatic Traction Control (ATC) |
| X | X | X | Auxiliary 12 volt air compressor |
| X | X | X | Computerized air-leveling system |
| X | X | X | Electronic cruise control w/indicator light |
| X | X | X | Engine batteries: 3 Gel cell |
| X | X | X | Engine block heater |
| X | Koni shock absorbers | ||
| X | X | Bilstein shock absorbers | |
| X | Lifting tag axle, 9,000 lb. GAWR | ||
| X | X | X | Power steering |
| X | Racor integrated fuel system with air & water purge | ||
| X | Rear axle ratio 4.30:1 | ||
| X | X | Rear axle ratio 4.78:1 | |
| X | Remote battery jumper terminals | ||
| X | X | X | Suspension: air springs, 8-bag, 10-bag (U320),100% air ride, outboard mounted |
| X | X | X | Tires: 295/80R22.5 |
| X | X | X | Transmission oil cooler |
| X | 200 amp alternator | ||
| X | X | X | 200 amp battery isolator |
| X | X | X | 18,000 lb. rated receiver hitch |
EXTERIOR FEATURES
EXTERIOR FEATURES
| U320 | U295 | U270 | EXTERIOR FEATURES |
|---|---|---|---|
| X | X | X | Air-operated entry step |
| X | X | X | Clear shield paint protection below windshield |
| Convenient utility station: | |||
| X | Fresh water hose reel, 50 amp shoreline reel | ||
| X | X | X | Hot & cold water faucet, soap dispenser, cable TV & phone connection, paper towel holder, 110v receptacle, water pump switch |
| X | X | X | Docking lights (4) |
| X | Drawer in LP compartment | ||
| X | X | X | Dual halogen head lamps with turn signals |
| X | X | X | Fiberglass roof, one piece |
| X | X | X | Fuel fill either side of coach |
| X | X | Girard automatic patio awning (w/end caps U320 only) | |
| X | ZipDee patio awning | ||
| X | X | X | Hidden air horns |
| X | X | X | Insulated windows |
| X | X | Joey Bed | |
| X | X | X | Keyless remote locks on entry door & storage bays |
| X | Stainless steel ladder | ||
| X | X | X | Lighted entry door assist handle |
| X | X | LP quick connect | |
| X | X | X | Manibloc plumbing system |
| X | X | X | Painted exterior graphics with full body paint and double clear coat finish |
| X | X | X | Parallel storage bay doors (except under slide rooms) |
| X | X | X | PTL entry door w/screen |
| X | Ramco triple-head chrome mirrors, remote/heated | ||
| X | X | Ramco double-head chrome mirrors, remote/heated | |
| X | X | X | TV outlet and 12v outlet in storage bay |
| X | X | X | ZipDee window awnings |
| X | Black & gray tank flush kits | ||
COCKPIT FEATURES
COCKPIT FEATURES
| U320 | U295 | U270 | DASH AND COCKPIT FEATURES: |
|---|---|---|---|
| X | X | X | AM/FM/Cassette radio with CD |
| X | X | X | Antenna warning alarm |
| X | X | X | Flip-up color back-up monitor with systems monitor, compass and outdoor thermometer |
| X | X | X | Back-lit analogue dash gauges |
| X | X | X | Battery boost switch |
| X | X | X | Cell phone connection and dual band antenna |
| X | X | X | Driver Information Center in dash |
| X | X | X | Electric windshield privacy shade |
| X | X | X | Hand held CB radio with weather band |
| X | X | X | Illuminated dash panel and shifter panel |
| X | X | X | Map lights, pilot and co-pilot |
| X | X | X | Slide-out drink holder and snack tray |
| X | X | X | Smart Wheel steering wheel, lighted |
| X | X | X | Leather 6 way power pilot seat |
| X | X | X | Leather 6 way power co-pilot seat with electric footrest |
| X | Heat & Massage controls - Driver & Passenger Chairs |
APPLIANCES/ELECTRONICS/LIGHTING/AUDIO-VIDEO
APPLIANCES/ELECTRONICS/LIGHTING/AUDIO-VIDEO
| U320 | U295 | U270 | APPLIANCES ELECTRONICS LIGHTING |
|---|---|---|---|
| Living room audio/video | |||
| X | 37” LCD TV monitor built into front overhead | ||
| X | 27“ LCD TV monitor built into front overhead | ||
| X | 24” Sony Wega flat screen TV | ||
| X | Jamo Audio/Video receiver w/built-in CD/DVD player | ||
| X | X | Sony Hi-Fi am/fm/av receiver (living room U295/U270, bedroom U295) | |
| X | X | X | Jamo 5 cube speaker system w/powered sub woofer |
| X | Home theater universal remote | ||
| Bedroom audio/video: | |||
| X | X | 20“ (U295), 15” (U270) LCD TV | |
| X | 22“ LCD TV | ||
| X | Jamo audio/video receiver with built-in CD/DVD player | ||
| X | X | Sony Hi-Fi VCR | |
| X | X | Jamo in-wall 2 speaker system | |
| X | Accent lighting under counters and behind valances | ||
| X | X | Dometic NDR-1402-BSIMHF 14 cu.ft. refrigerator/freezer w/ icemaker | |
| X | X | X | Electric TV antenna with signal booster |
| X | G.E. Advantium oven, black | ||
| X | X | Halogen accent lighting | |
| X | X | X | Halogen adjustable reading lamps in bedroom |
| X | X | X | Inverter/Power monitor panel |
| X | X | Multiplex lighting control system | |
| X | X | Seaward 2-burner cook top | |
| X | Gaggenau 2-burner cook top | ||
| X | X | Sharp black microwave/convection oven | |
| X | X | X | Washer/dryer connections |
LIVABILITY
LIVABILITY
| U320 | U295 | U270 | INTERIOR LIVABILITY FEATURES |
|---|---|---|---|
| X | Aqua-Hot hydronic heating and hot water system | ||
| X | X | Bedroom alarm clock | |
| X | X | Built-in safe w/electronic push-button lock | |
| X | X | Ceramic tile floor, entry | |
| X | X | X | Ceramic tile floor, kitchen, bath |
| X | X | X | Color-coordinated throw pillows, sofa and bed |
| X | X | X | Concealed cabinet door hinges |
| X | X | Designer kitchen faucet with spray | |
| X | X | X | Designer window treatment with day/night shades |
| X | X | X | Drinking water filter |
| X | X | X | Ekornes chair and ottoman, leather |
| X | X | X | Fantastic Fan in bath, automatic open/ close |
| X | X | Generator start/stop switch in bedroom | |
| X | X | X | Handcrafted walnut, cherry or maple cabinetry |
| X | X | X | Pantry in kitchen |
| X | X | X | Porcelain toilet |
| X | X | X | Satin nickel and brass cabinet hardware |
| X | X | Slide-out shelf under kitchen sink | |
| X | X | Slide-out drawer under refrigerator | |
| X | X | X | Solid surface counter tops, kitchen and bath |
| X | X | X | Solid surface entry steps w/storage below |
| X | X | Solid surface 2-compartment kitchen sink | |
| X | X | Solid surface lavatory sink | |
| X | X | X | Storage under entry step |
| X | X | Tip out storage below kitchen sink | |
| X | Water fill switch with automatic shut-off | ||
| X | X | Water pump switch in kitchen, bath, and utility station | |
| X | X | X | 60”x 80“ queen bed |
| X | X | X | Step well cover, air operated |
HEATING/COOLING/ELECTRICAL
HEATING/COOLING/ELECTRICAL
| U320 | U295 | U270 | HEATING COOLING ELECTRICAL |
|---|---|---|---|
| X | Aqua-Hot hydronic heating and hot water | ||
| X | X | LP furnaces | |
| X | X | Coach batteries: (3) 8d gel type with heat probe, (2) 8d gel type - U270 | |
| X | X | X | Comfort Control Center for A/C and Aqua-Hot |
| X | X | X | Ducted air conditioning: (2) Dometic 15,000 BTU roof a/c with heat pumps (3 units on 4200), (2) Dometic 13,500 BTU roof a/c with heat strips (U270) |
| X | X | X | Electrical surge suppression system |
| X | X | X | Low-battery generator auto-start |
| X | X | X | Master battery disconnect switch |
| X | X | ProSine 2500 watt inverter/charger, 2000 watt inverter/charger - U270 | |
| X | X | X | 10.0 kw Power Tech® diesel generator in quiet box (12.0 kw on 4200 series) |
| X | X | X | 50 amp shoreline connection |
| X | X | X | 28,000 BTU Automotive air conditioner |
